Portable & Rugged

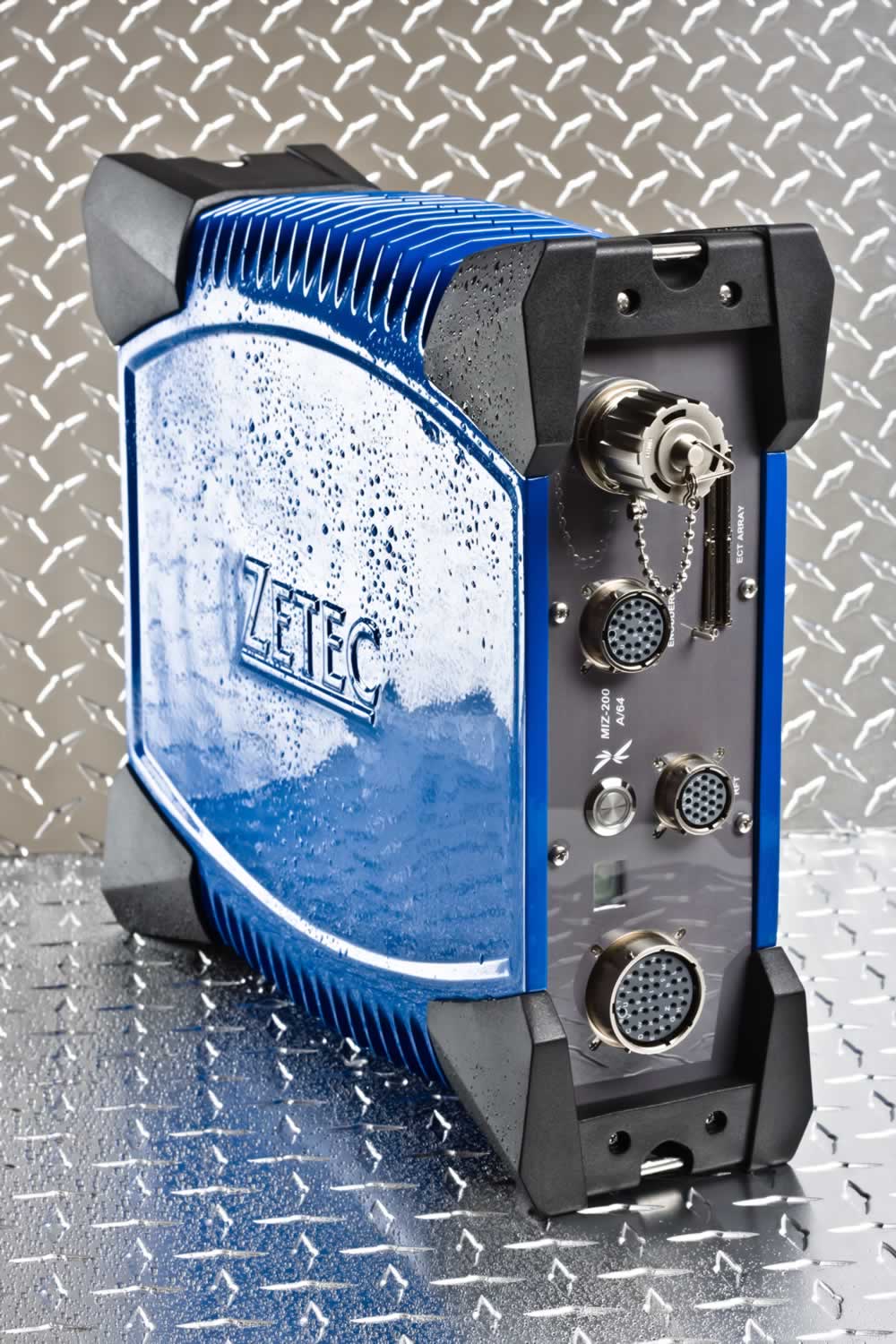

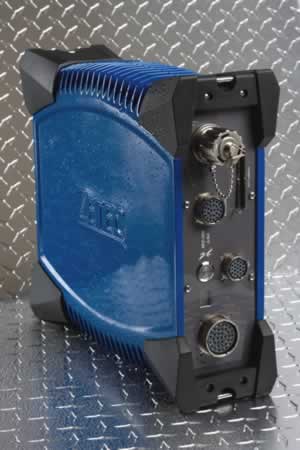

You’ll notice the MIZ-200 from Zetec is tough right out of the box. The rugged cast aluminum case is designed to withstand the bumps and drops that inevitably happen in inspection environments. The sealed and fanless unit will withstand dust and water. This means more confidence for you and less replacement cost for your organization.

Tough Exterior

The MIZ-200 uses the cast aluminum case also used in our ZIRCON product and is the toughest in the industry.

Dependable

The MIZ-200 is sealed and fanless. With no moving parts or exposed openings, it is impervious to ingress of dust and water.  The unit may be powered from AC mains or from long life, hot swappable lithium-ion batteries.

Protected Interior

  • Shock & Vibe tested to MIL-STD-810E
  • Drop Test to ISTA 1G

Convenient Size

  • Dimensions: 4.2″ H x 11.7″ L x 12.8″ W
  • Volume = 629 cu in
  • Light Weight: < 15 lbs

Case Detail

The rubber corner bumpers also serve as convenient handles. They are easily gripped with a bare or gloved hand. Each corner also has integrated carry pins that can be used to affix a shoulder strap or carry handle. The ribs on the case serve as cooling fins for the sealed and fanless unit. They also add to the structural integrity of the rugged case.

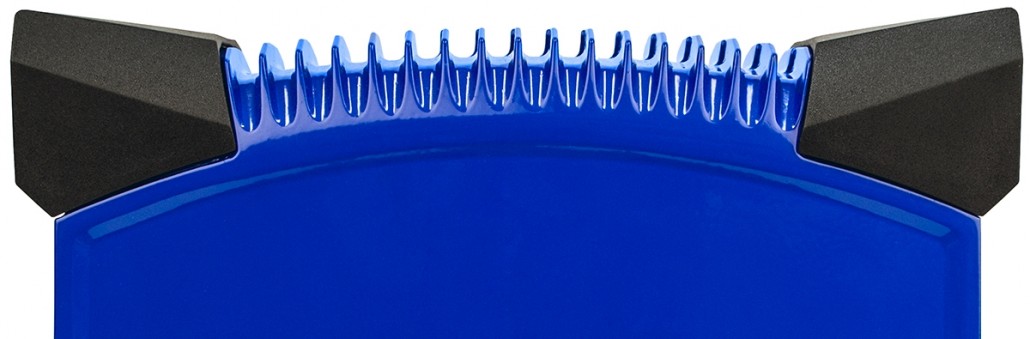

MIZ-200 Xircon case rib detail
